A developer wanted to add a building expansion on a development near downtown Victoria, BC. Neighbouring buildings bordered the project site closely and created a narrow work area.
The site for this project presented many challenges. The project site was narrow so the neighbouring buildings were in danger of damage. The solution needed to provide a reliable foundation without putting the surrounding structures at risk.

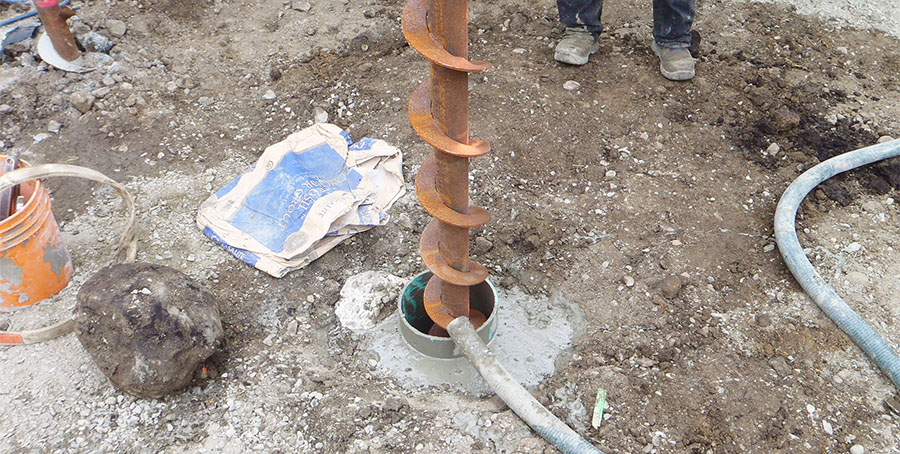

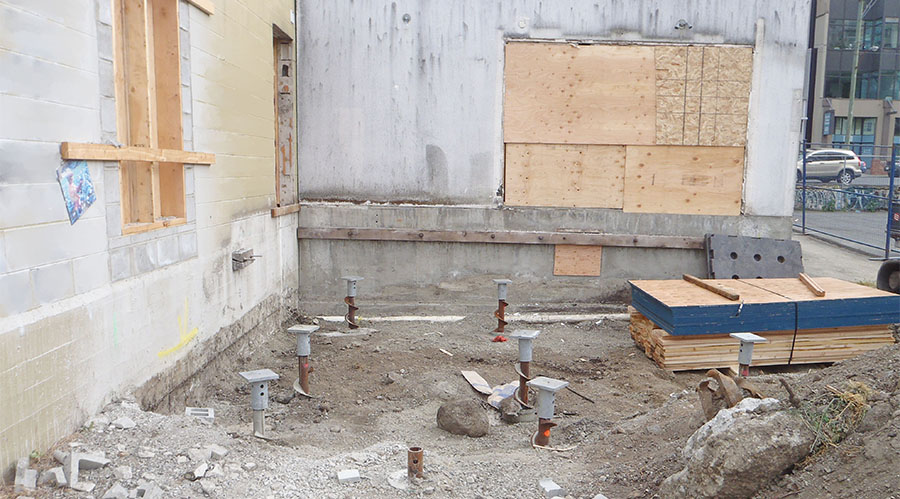

Our team designed and installed a foundation that used smaller equipment and grouted displacement piles. TerraCana was able to provide a pile-supported foundation with risk-free installation. The design used grouted displacement piles installed to a depth of 55 feet. We also encased the upper portion of the piles in PVC to prevent downdrag.
No. of Piles: 14
Pile Type: Helical Micropile. 2-7/8″ shaft with 8″ grouted column
Application: Commercial/ New Construction
