A developer wanted to build a 1615 sq. ft. residence in Richmond, BC. The soil type however, was peat over river sand. Without soil stabilization, this soft and unstable soil type rots and causes structures to sink.
The project site was a peat bog that had not been de-watered. Because of this, the machinery needed swamp pads for stabilization as well as custom extensions. These increased their reach and minimized the need to move equipment. TerraCana could not use soil preloading methods to prep the site because neighbouring houses bordered the project site so closely.

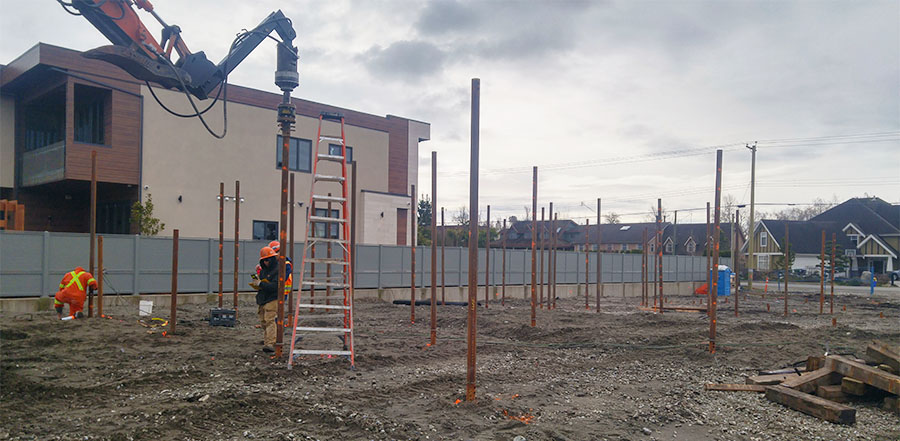

TerraCana did multiple load tests prior to construction to verify pile capacities and optimize their design. In the end, the custom design included 112 vertical piles and 49 battered (angled) piles. The result of this careful design is now a strong and reliable foundation that will be able to support this 1615 sq. ft. residence in the long-term.
No. of Piles: 161

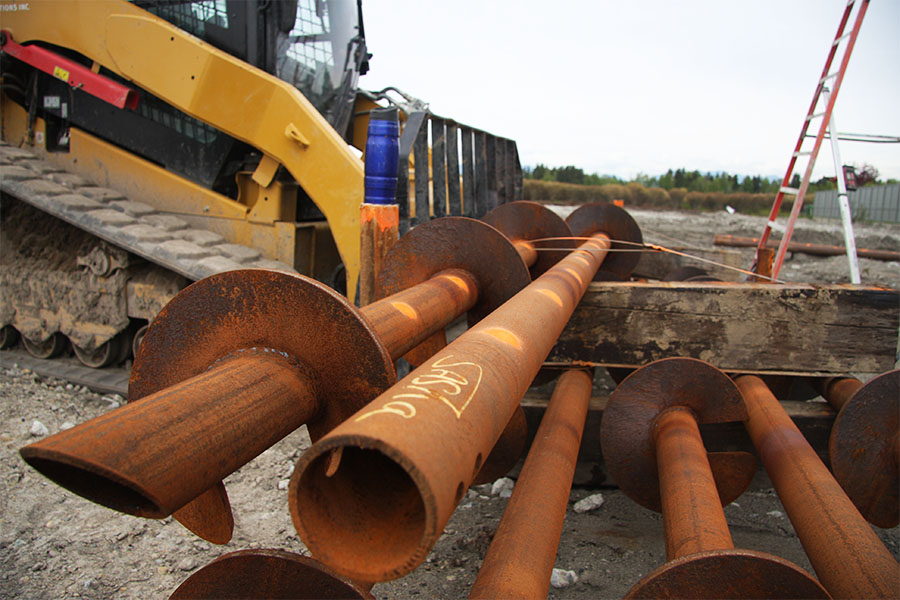

Pile Type: 3.5 inch diameter Pipe Piles
Application: Soil Stabilization with both vertical and battered piles.
